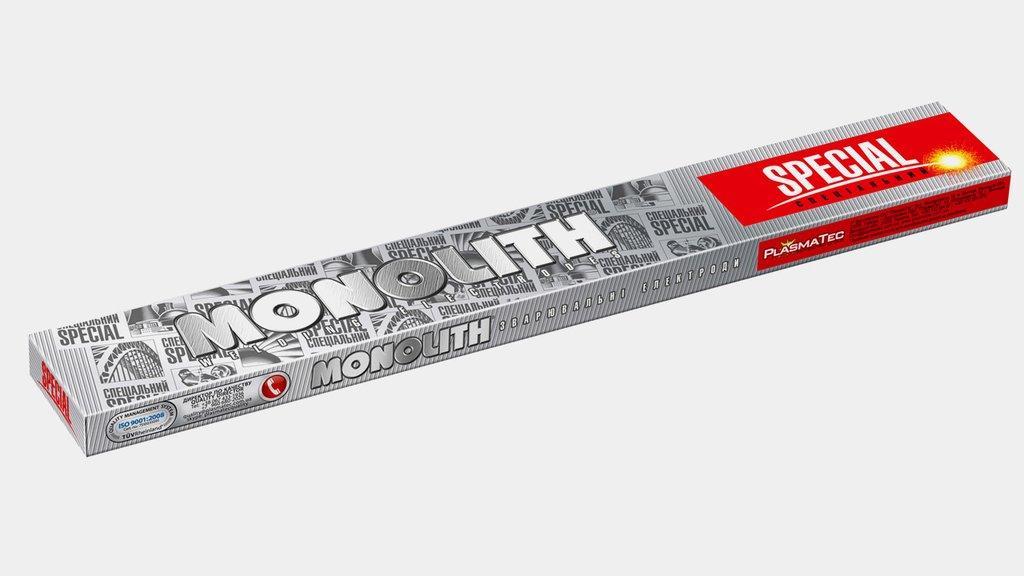

![MONOLITH E316L-16 - AWS A5.4/SFA 5.4 - 5/32" (4.0MM) X 13.8" SMAW ELECTRODE [1KG]](http://calarc.ca/cdn/shop/files/special-150d8eb_7680c7d8-c580-48bd-97ea-66f02bf83850_1024x576.jpg?v=1771612271)
MONOLITH E316L-16 - AWS A5.4/SFA 5.4 - 5/32" (4.0MM) X 13.8" SMAW ELECTRODE [1KG]
by MONOLTH
SKU MON-M316L-532-1
Original price
$26.51
-
Original price
$26.51
Original price
$26.51
$26.51
-
$26.51
Current price
$26.51
Monolith - E316L-16 AWS А5.4 / SFA-5.4 - 5/32" (4mm) x 13.8" (350mm) SMAW Electrode (1KG Container)
Type of coating
Rutile
Joint Metal Chemical Composition, %
As required per AWS A5.4 / Typical results
C
Carbon
0.007
Mn
Manganese
0.87
Si
Silicon
0.63
P
Phosphorus
0.024
S
Sulfur
0.025
Ni
Nickel
11.60
Cr
Chromium
18.58
Mo
Molybdenum
3.0
Cu
Cuprum
0.08
MECHANICAL PROPERTIES OF JOINT METAL
As required per AWS A5.4 / Typical results
- Tensile strength, MPa (ksi):595 (86)
- Elongation, %:41
REDRYING BEFORE WELDING
- the permissible moisture content in the coating before use is not more than 0.2 %
- if the electrode coating is moistened above normal, dry for 60 minutes at 400±10°С (752±50°F)
TYPICAL WELDING PARAMETERS
| Current, A | |||
| 2.5 (3/32) | 3.0 (1/8) | 3.2 (1/8) | 4.0 (5/32) |
| 50 – 80 | 70 – 100 | 80 – 110 | 90 – 130 |
Welding Current: AC, DC+. Arc voltage of 23 – 27 V
Welding Positions
1G
2F
2G
3G
4G
4F
AWS D1.1/D1.1M:2020
APPROVALS
Manufactured under a quality system certified to ISO 9001
