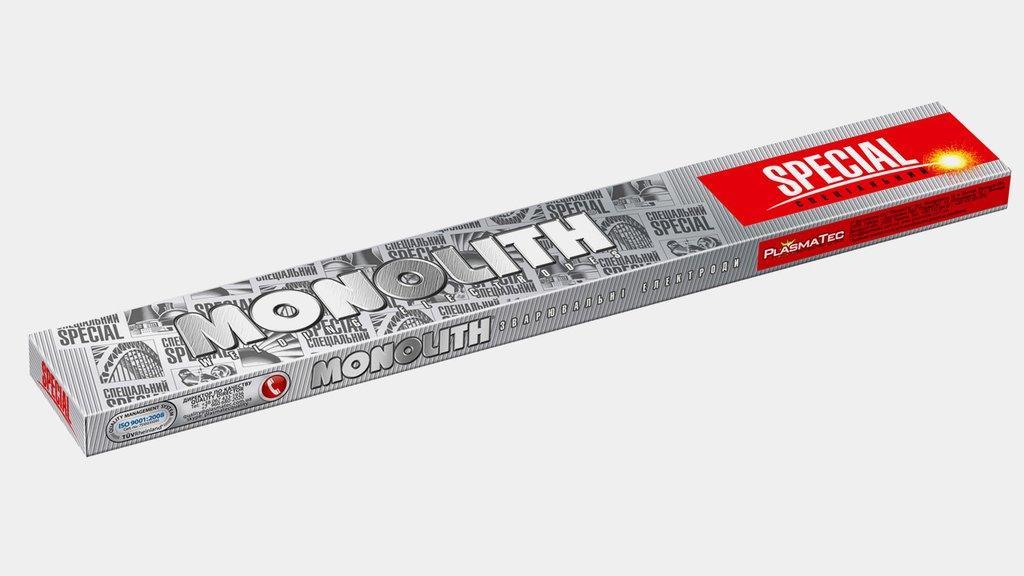

MONOLITH E309L-16 - AWS A5.4/SFA 5.4 - 1/8" (3.2MM) X 13.8" SMAW ELECTRODE [1KG]
by MONOLTH
SKU MON-M309L-18-1
Original price
$23.82
-
Original price
$23.82
Original price
$23.82
$23.82
-
$23.82
Current price
$23.82
Monolith - E309L-16 AWS А5.4 / SFA-5.4 - 1/8" (3.2mm) x 13.8" (350mm) SMAW Electrode (1KG Container)
Type of coating
Rutile
Joint Metal Chemical Composition, %
As required per AWS A5.4 / Typical results
C
Carbon
0.002
Mn
Manganese
1.15
Si
Silicon
0.7
P
Phosphorus
0.021
S
Sulfur
0.02
Ni
Nickel
12.92
Cr
Chromium
22.66
Mo
Molybdenum
0.017
Cu
Cuprum
0.05
MECHANICAL PROPERTIES OF JOINT METAL
As required per AWS A5.4 / Typical results
- Tensile strength, MPa (ksi):579 (84
- Elongation, %:36
REDRYING BEFORE WELDING
- the permissible moisture content in the coating before use is not more than 0.2 %
- if the electrode coating is moistened above normal, dry for 60 minutes at 400±10°С (752±50°F)
TYPICAL WELDING PARAMETERS
| Current, A | |||
| 2.5 (3/32) | 3.0 (1/8) | 3.2 (1/8) | 4.0 (5/32) |
| 50 – 80 | 70 – 100 | 80 – 110 | 90 – 130 |
Welding Current: AC, DC+. Arc voltage of 23 – 27 V
Welding Positions
1G
2F
2G
3G
4G
4F
AWS D1.1/D1.1M:2020
APPROVALS
Manufactured under a quality system certified to ISO 9001
